It for remote controlling circuit making,breaking and frequent starting AC motors
It can also combine with the auxiliary contact group,air delayer,thermal relay devices etc
|
Type |
LP1-D09 |
LP1-D12 |
LP1-D18 |
LP1-D25 |
LP1-D32 |
LP1-D40 |
LP1-D50 |
LP1-D65 |
LP1-D80 |
LP1-D95 |
||
|
Rated working current(A) |
380V |
AC3 |
9 |
12 |
18 |
25 |
32 |
40 |
50 |
65 |
80 |
95 |
|
AC4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
37 |
44 |
||
|
660V |
AC3 |
6.6 |
8.9 |
12 |
18 |
21 |
34 |
39 |
42 |
49 |
55 |
|
|
AC4 |
1.5 |
2 |
3.8 |
4.4 |
7.5 |
9 |
12 |
14 |
17.3 |
21.3 |
||
|
Rated heat current(A) |
25 |
25 |
32 |
40 |
50 |
60 |
80 |
80 |
125 |
125 |
||
|
Controllable power(kW) |
220/240V |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
25 |
|
|
380/400V |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
||
|
415V |
4 |
5.5 |
9 |
11 |
15 |
22 |
30 |
37 |
45 |
45 |
||
|
500V |
5.5 |
7.5 |
10 |
15 |
18.5 |
22 |
30 |
37 |
55 |
55 |
||
|
600/690V |
5.5 |
7.5 |
10 |
15 |
18.5 |
30 |
33 |
37 |
45 |
55 |
||
|
Weight(Kg) |
DC contactor |
0.64 |
0.34 |
0.65 |
0.65 |
0.95 |
2.185 |
2.185 |
2.185 |
2.525 |
2.525 |
|
|
Measure(Mm)3 |
DC contactor |
76x115 |
76x115 |
76x120 |
76x130 |
86x135 |
128x175 |
128x175 |
128x175 |
128x183 |
128x183 |
|
|
x47 |
x47 |
x47 |
x59 |
x59 |
x81 |
x87 |
x87 |
x87 |
x87 |
|||
|
Pole |
3,4 |
3,4 |
3 |
3,4 |
3 |
3,4 |
3,4 |
3,4 |
3,4 |
3,4 |
||
|
Rated working voltage(V) |
380,660 |
|||||||||||
|
Rated insulation voltage(V) |
660 |
|||||||||||
|
Mechanical life x104 |
1000 |
1000 |
1000 |
1000 |
800 |
800 |
800 |
800 |
600 |
600 |
||
|
Electrical life |
AC3x104 |
100 |
100 |
100 |
100 |
80 |
80 |
80 |
80 |
60 |
60 |
|
|
AC4x104 |
20 |
20 |
20 |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
||
|
Operating frequency |
Electrical life |
AC3x104 |
1200 |
1200 |
1200 |
1200 |
600 |
600 |
600 |
600 |
600 |
600 |
|
AC4x104 |
300 |
|||||||||||
|
Mechanical life x104 |
3600 |
|||||||||||
|
Rated controlled voltage (V) |
24-660 |
|||||||||||
|
Working voltage |
Close |
DC% |
0.85-1.1Us |
|||||||||
|
Open |
AC% |
0.10-0.75Us |
||||||||||
|

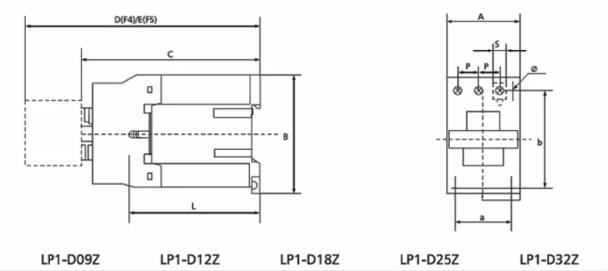

Type |
AMAX |
BMAX |
CMAX |
DMAX |
EMAX |
a |
b |
φ |
L |
P |
S |
|
LP1-D09~12 |
|
74 |
|
|
|
35 |
50/60 |
4.5 |
|
|
|
|
LP1-D18 |
47 |
76 |
82(116) |
120.5(154.5) |
140.5(174.5) |
34/35 |
50/60 |
4.5 |
60 |
105 |
8.6 |
|
LP1-D25~32 |
57 |
86 |
95(131) |
133.5(169.5) |
153.5(189.5) |
40 |
48 |
4.5 |
70 |
13.2 |
11.7 |
|
LP1-D40~65 |
77 |
129 |
116(173) |
154.5(211.5) |
174.5(231.5) |
40 |
100/110 |
6.5 |
78 |
20 |
8.6 |
|
LP1-D80~95 |
84 |
129 |
116(173) |
154.5(211.5) |
174.5(231.5) |
40 |
100/110 |
6.5 |
78 |
20 |
8.6 |
|
LP1-80~95 |
96 |
129 |
127(183) |
160.5(221.5) |
180.5(241.5) |
40 |
100/110 |
6.5 |
83 |
23.5 |
12 |
