- Application
- Specification
The series of products for frequency of 50/60Hz, rated insulation voltage up to 690-1000V, rated operational current up to 9A-400A at rated operational voltage up to 380V under AC-3

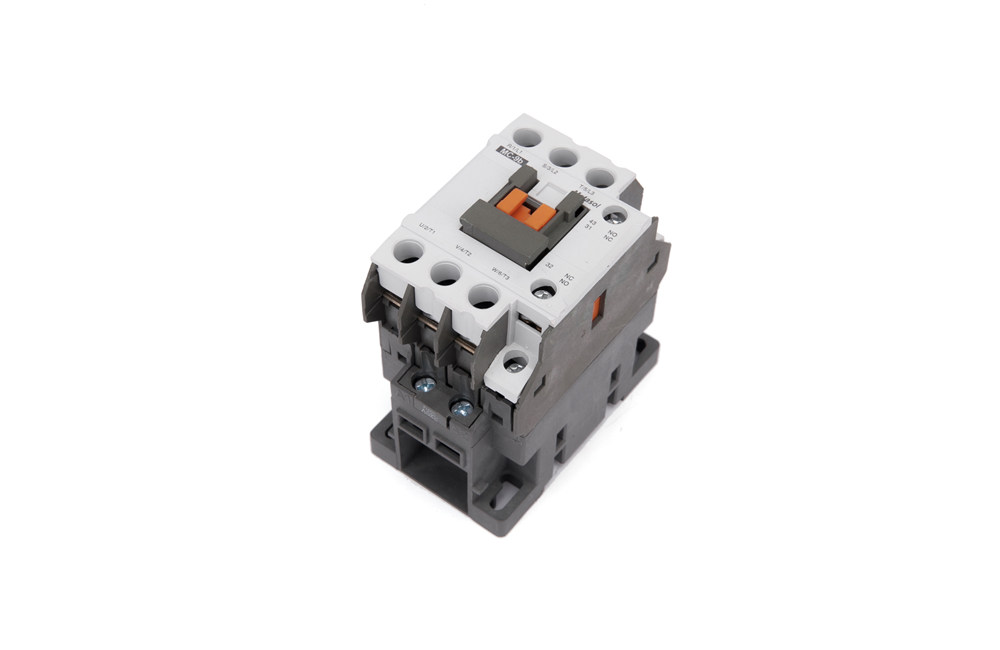

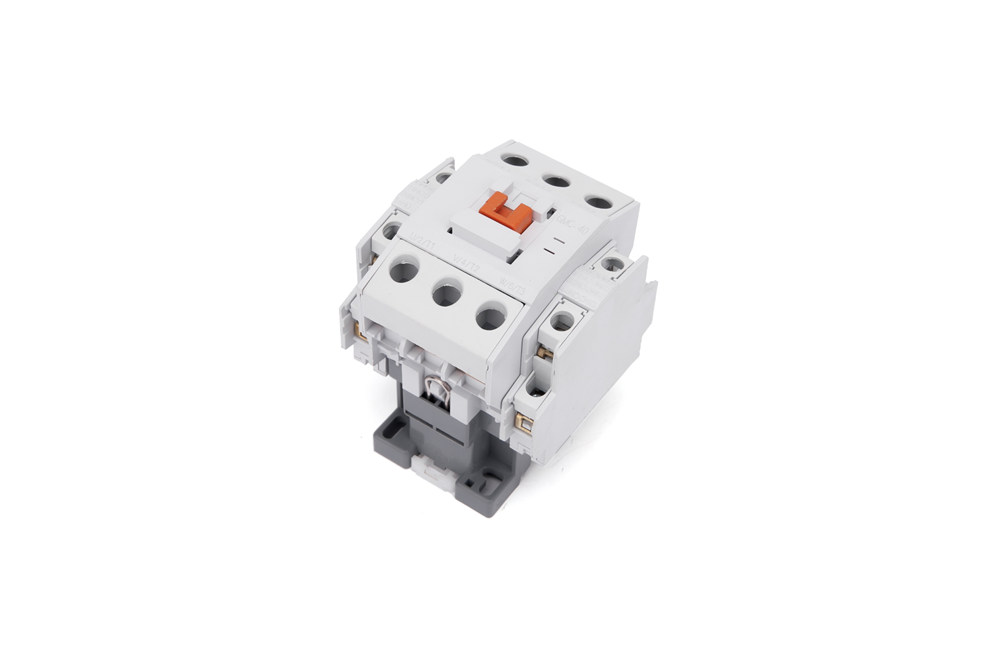

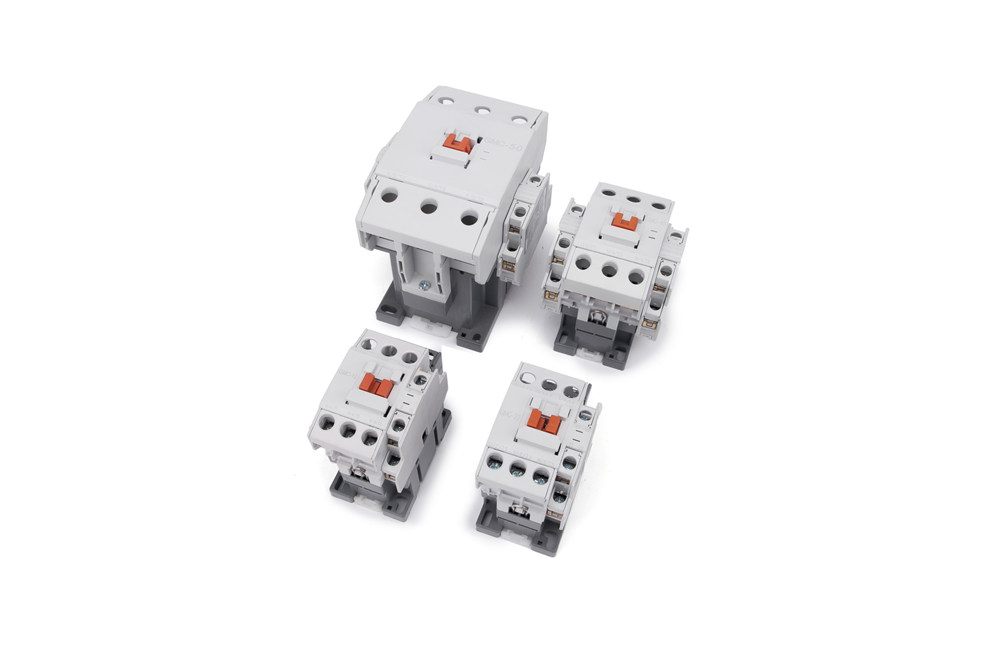

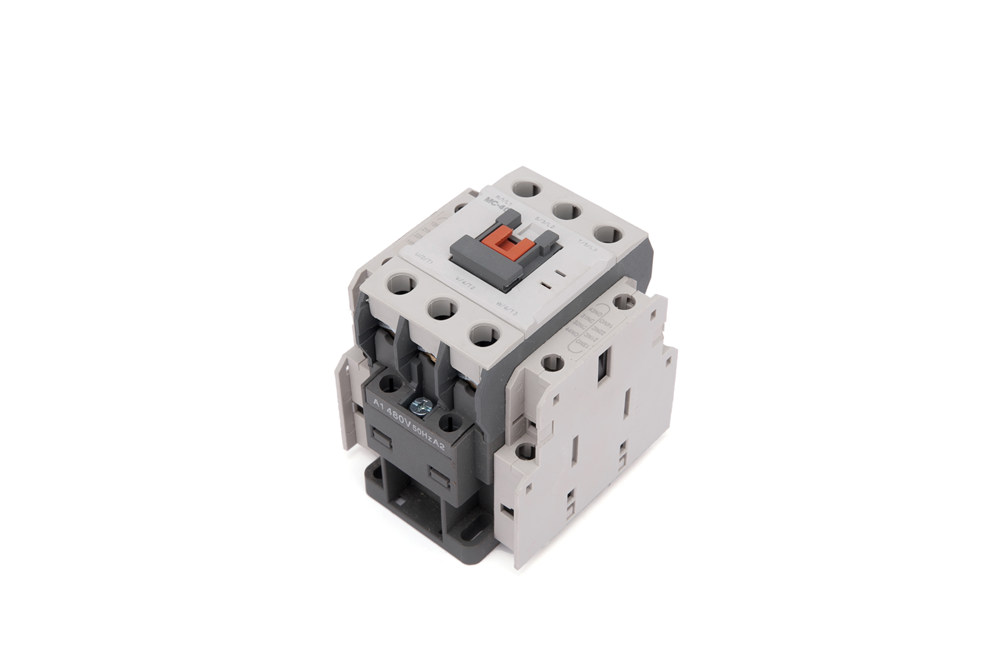

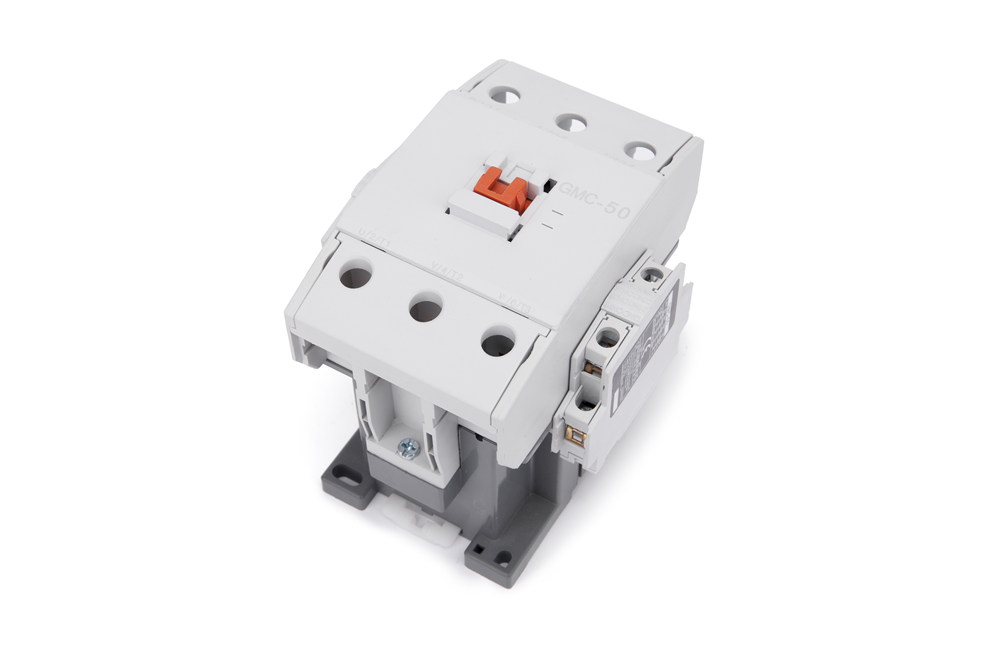

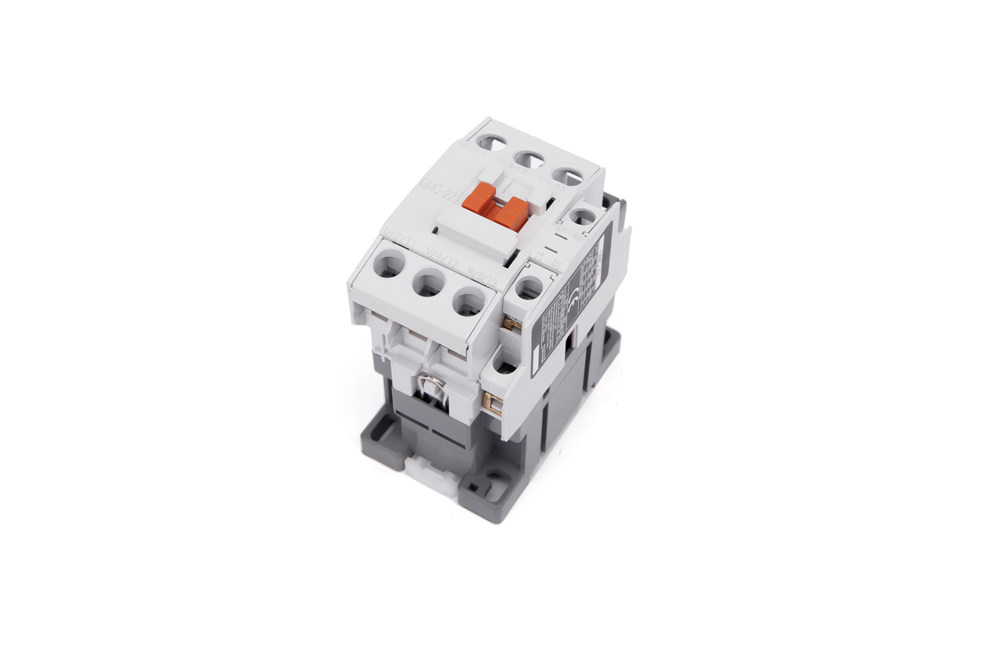

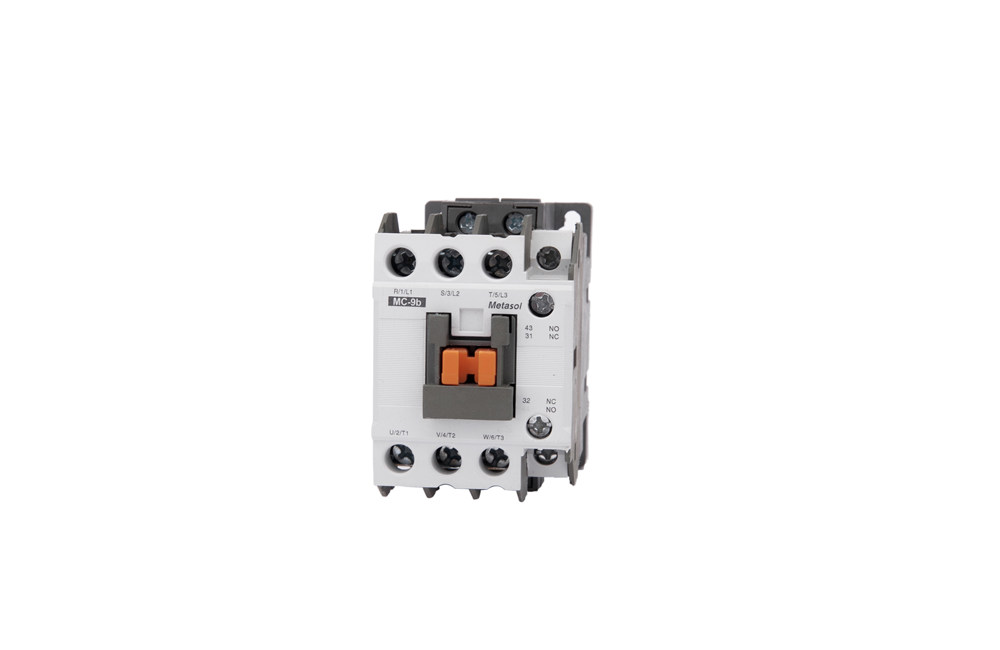

GMC Series AC Contactors are mainly used for making breaking electric circuits at a long distance and for frequent starting stopping and reversing control of AC motors
They products comply with IEC947,VDE0660,G814048
|
Type |
GDMC-9 |
GDMC-12 |
GDMC-18 |
GDMC-22 |
|||
|
IEC-60947 |
AC1 duty |
20A |
20A |
25A |
32A |
||
|
AC3 duty |
200-240V |
2.5kW 11A |
3.5kW 13A |
4.5kW 18A |
5.5kW 22A |
||
|
380-440V |
4kW 9A |
5.5kW 12A |
7.5kW 18A |
11kW 22A |
|||
|
500-550V |
4kW 7A |
7.5kW 12A |
7.5kW 13A |
15kW 22A |
|||
|
690V |
4kW 5A |
7.5kW 9A |
7.5kW 9A |
15kW 18A |
|||
|
UL |
Continuous current (th) |
20A |
25A |
30A |
32A |
||
|
AC Motor |
single |
115V |
0.5HP |
0.5HP |
1HP |
2HP |
|
|
phase |
230V |
1HP |
2HP |
3HP |
3HP |
||
|
Three |
200V |
2HP |
3HP |
5HP |
7HP |
||
|
phase |
230V |
2HP |
3HP |
5HP |
7.5HP |
||
|
|
460V |
5HP |
7.5HP |
10HP |
10HP |
||
|
|
575V |
7.5HP |
10HP |
15HP |
15HP |
||
|
Aux. contact |
Side mounting |
AU-1 |
|||||
|
Top mounting |
AU-2, AU-4 |
||||||
|
Panel installation |
Rail & screw |
||||||
|
External dimension (mm) (WxHxD) |
44 x 80 x 86.8 |
||||||
|
Type |
GDMC-32 |
GDMC-40 |
GDMC-50 |
GDMC-65 |
|||
|
IEC-60947 |
AC1 duty |
50A |
60A |
80A |
100A |
||
|
AC3 duty |
200-240V |
7.5kW 32A |
11kW 40A |
15kW 55A |
18.5kW 65A |
||
|
380-440V |
15kW 32A |
18.5kW 40A |
22kW 50A |
30kW 65A |
|||
|
500-550V |
18.5kW 28A |
22kW 32A |
30kW 43A |
37kW 60A |
|||
|
690V |
18.5kW 21A |
22kW 25A |
30kW 33A |
37kW 47A |
|||
|
UL |
Continuous current (th) |
45A |
50A |
70A |
80A |
||
|
AC Motor |
single |
115V |
2HP |
3HP |
3HP |
5HP |
|
|
phase |
230V |
5HP |
5HP |
7.5HP |
10HP |
||
|
Three |
200V |
7.5HP |
10HP |
10HP |
15HP |
||
|
phase |
230V |
10HP |
10HP |
15HP |
20HP |
||
|
|
460V |
20HP |
25HP |
30HP |
40HP |
||
|
|
575V |
20HP |
25HP |
30HP |
40HP |
||
|
Aux. contact |
Side mounting |
AU-1 |
|||||
|
Top mounting |
AU-2, AU-4 |
||||||
|
Panel installation |
Rail & screw |
||||||
|
External dimension (mm) (WxHxD) |
68 x 82 x 94.6 |
94 x 123.5 x 117.4 |
|||||
|
Type |
GDMC-75 |
GDMC-85 |
GDMC-100 |
GDMC-125 |
|||
|
IEC-60947 |
AC1 duty |
110A |
135A |
150A |
150A |
||
|
AC3 duty |
200-240V |
22kW 75A |
25kW 85A |
30kW 105A |
37kW 125A |
||
|
380-440V |
37kW 75A |
45kW 85A |
55kW 105A |
60kW 120A |
|||
|
500-550V |
45kW 64A |
45kW 75A |
55kW 85A |
60kW 90A |
|||
|
690V |
45kW 47A |
45kW 52A |
55kW 65A |
60kW 70A |
|||
|
UL |
Continuous current (th) |
90A |
100A |
160A |
160A |
||
|
AC Motor |
single |
115V |
5HP |
7.5HP |
7.5HP |
10HP |
|
|
phase |
230V |
15HP |
15HP |
15HP |
20HP |
||
|
Three |
200V |
20HP |
25HP |
30HP |
40HP |
||
|
phase |
230V |
25HP |
30HP |
30HP |
40HP |
||
|
|
460V |
50HP |
50HP |
60HP |
75HP |
||
|
|
575V |
50HP |
50HP |
60HP |
75HP |
||
|
Aux. contact |
Side mounting |
AU-1 |
AU-100 |
||||
|
Top mounting |
AU-2, AU-4 |
- |
|||||
|
Panel installation |
Rail & screw |
Screw |
|||||
|
External dimension (mm) (WxHxD) |
94 x 123.5 x 117.4 |
100 x 157.4 x 146.5 |
|||||
