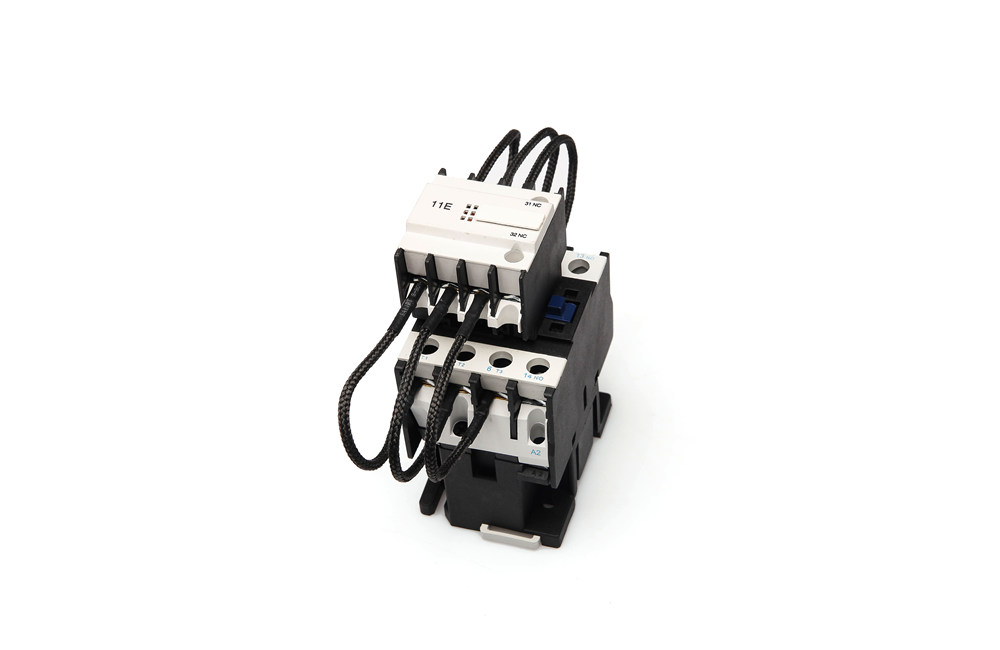

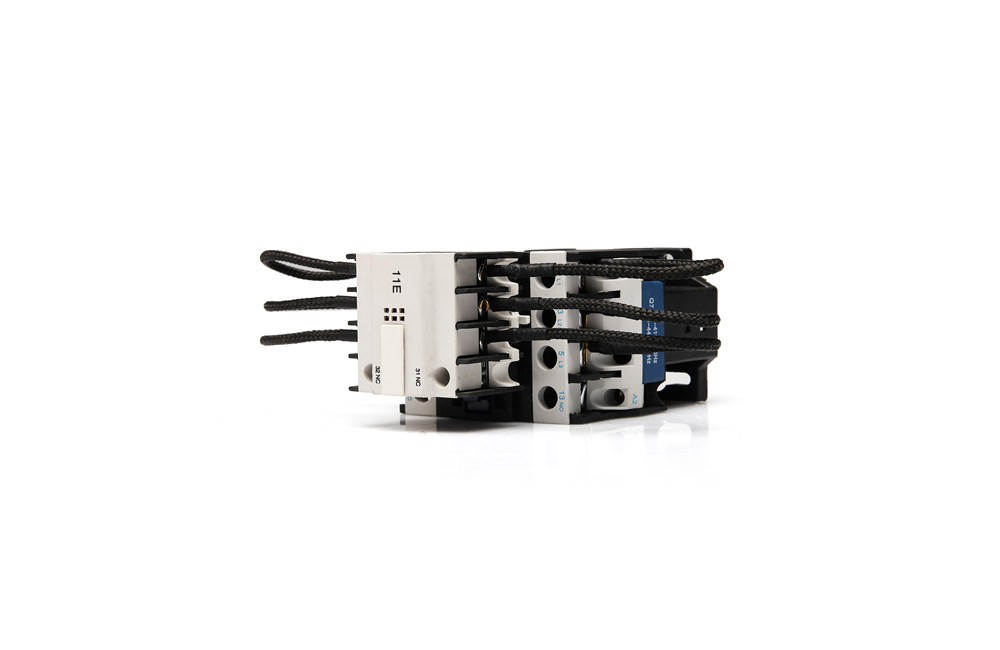

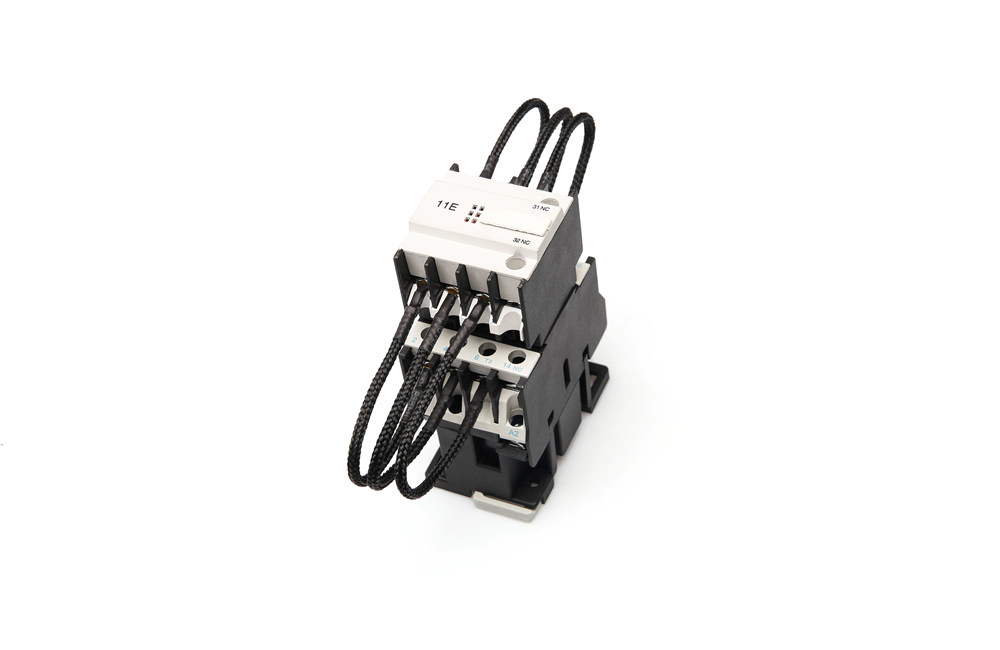

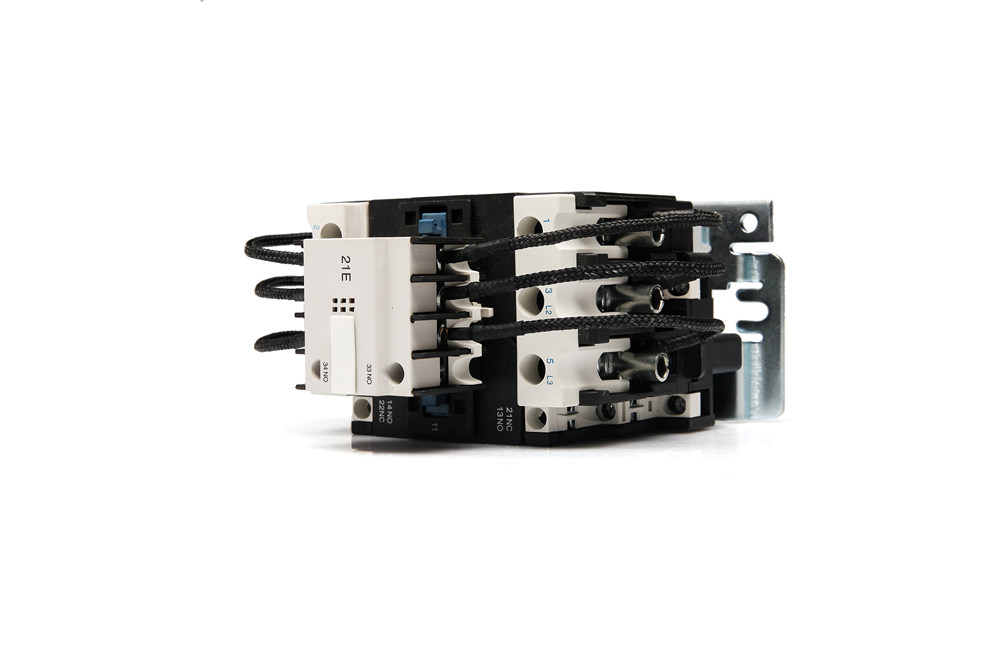

It is Used to put a low voltage parallel connected capacitor in operation or switch it off in a low voltage reactive power compensation device
The contactor is equipped with a surge suppressor.which can effective reduce the surge current passing through the capacitor at weitching on and suppress the over-voltage at switching 0ff
The product is in conformity with the standards IEC947-4-1
|
Model |
CJ19-25 |
CJ19-32 |
CJ19-43 |
CJ19-63 |
CJ19-95 |
|
|
Electrical life(×103) |
100 |
100 |
100 |
100 |
100 |
|
|
Rated current le(380V)A |
17 |
23 |
29 |
43 |
63 |
|
|
Power of controlled capacitor |
220/230V |
6 |
9 |
10 |
15 |
22 |
|
380/400V |
12 |
18 |
20 |
30 |
40 |
|
|
Rating insulation voltage Ui(V) |
500 |
|||||
|
Rating operational voltage Ue(V) |
380 |
|||||
|
Restrained surge capacity |
20le |
|||||
|
Operation range |
Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us |
|||||
|
Coil power(VA) |
Start-up |
70 |
110 |
110 |
200 |
200 |
|
Holding |
8 |
11 |
11 |
20 |
20 |
|
|
Control capacity of auxiliary contact |
AC-15 360VA; DC-13 33W |
|||||
|
Weight(Kg) |
0.44 |
0.63 |
0.64 |
1.4 |
1.5 |
|
|

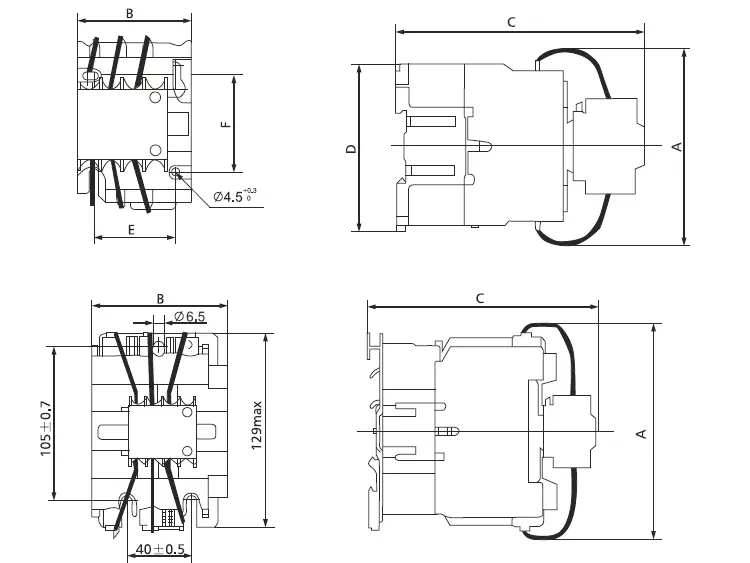

Type |
Amax |
Bmax |
Cmax |
Dmax |
E |
F |
Note |
|
CJ19-25C |
80 |
47 |
124 |
76 |
34/35 |
50/60 |
Screw mount/35mm rail mount |
|
CJ19-32C |
90 |
58 |
134 |
86 |
40 |
48 |
|
|
CJ19-43C |
90 |
58 |
136 |
86 |
40 |
48 |
|
|
CJ19-63C |
132 |
79 |
150 |
|
|
|
|
|
CJ19-95C |
135 |
87 |
158 |
|
|
|
