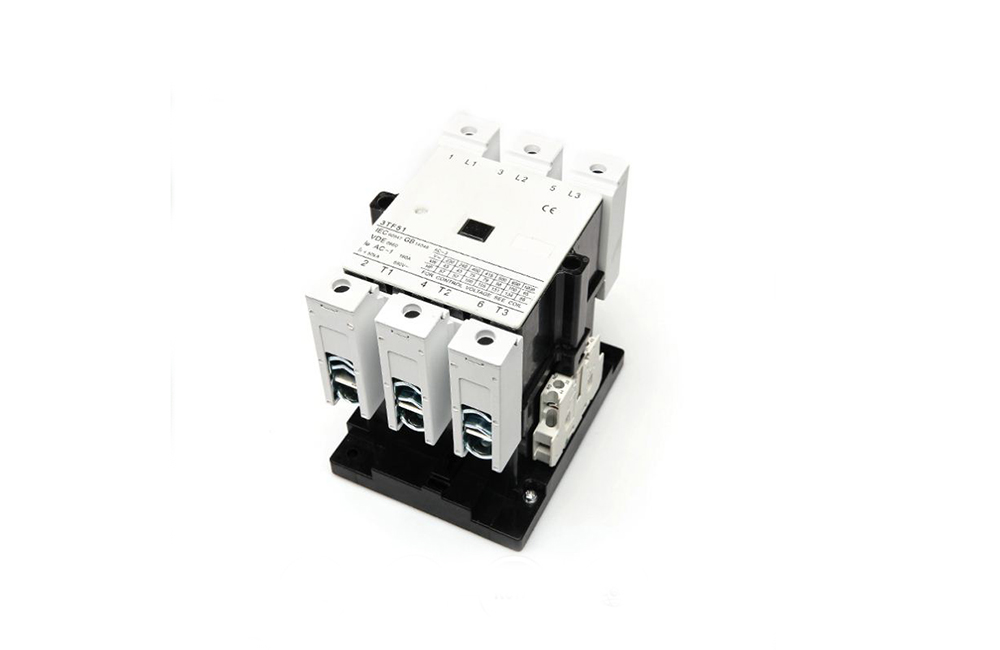

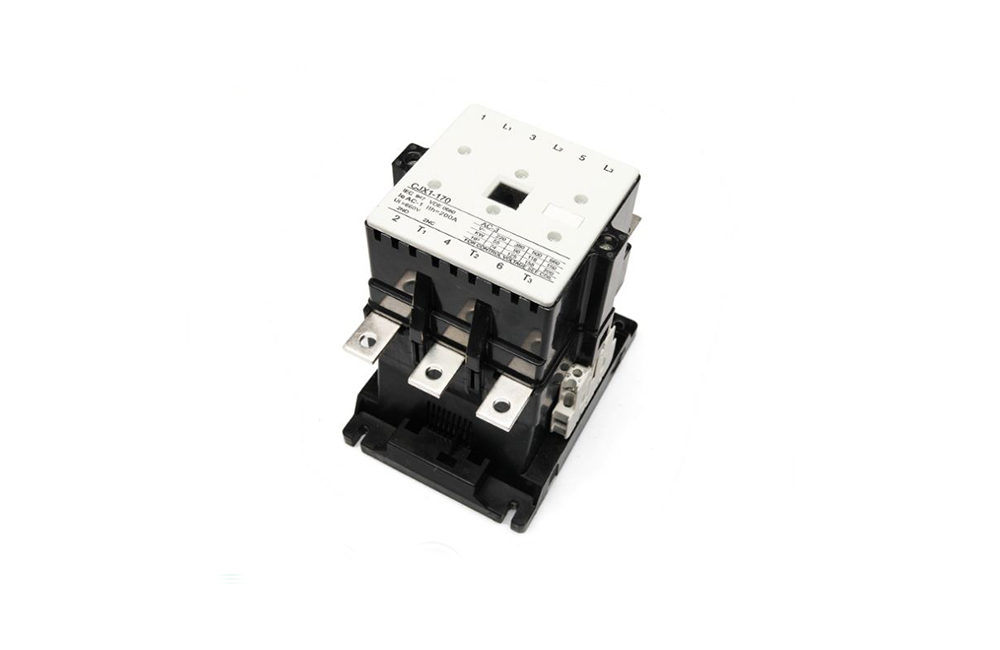

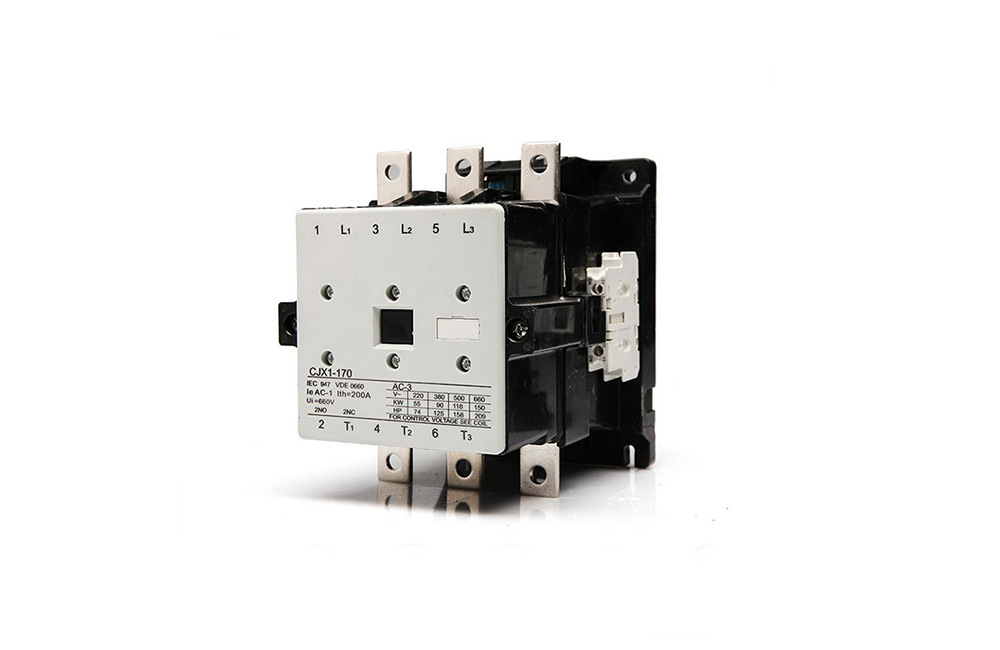

Quick Details

  • Place of Origin: Zhejiang, China
  • Model Number: CJX1-63
  • Number of Pole: 3
  • Main Circuit Rating Voltage: 380V/660V
  • Product Name: Ac Contactor 63A
  • Rated voltage: Up to 1000V
  • Operating voltage range of coil: (0.8~1.1)Ue
  • Application: For making/breaking electric circuit at a long distance,etc
  • Main products: Specialized in contactor,circuit breakers,etc.
  • Brand Name: GWIEC
  • Electricity Type: AC
  • Phase: 3
  • Main Circuit Rating Current: 63A
  • Rated Current: Up to 475A
  • Frequency: 50Hz/60Hz
  • Standard: CE/IEC60947-4-1
  • OEM: Yes,can make famous brand
  • Design: Can Combined with the auxiliary contact block, timer delay
  • Supply Ability: 10000 Piece/Pieces per Week Contactor free sample contact us

Packaging & Delivery

  • Packaging Details Standard export packing or packing as your requirements
  • Port Ningbo
  • Lead Time : Shipped in 15 days after payment

Application:

CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9-475A under AC-3 duty

It is mainly used for making/breaking electric circuit at a long distance & for frequent starting/stopping & with thermal relay to compose a magnetic motor starter

The product conforms to IEC60947-4-1 stardand.

Type

CJX1

9~12

16~22

32

45~63

75~85

110~140

170~205

250~300

400~475

Mechanical endurance(×106)

10

10

10

8

8

8

8

8

8

Conventional thermal current(A)

20

30

45

80

100

160

210

300

400/550

Rated insulation voltage(V)

660

660

660

1000

1000

1000

1000

1000

1000

Rated(380V)operating current(A)

AC-3

9/12

16/22

32

45/63

75/85

110/140

170/205

250/300

400/475

AC-4

3.3/4.3

7.7/8.5

15.6

24/28

34/42

54/68

75/96

110/125

150

Power of controllable motor(KW)AC-3

380V

4/5.5

7.5/11

15

22/30

37/45

55/75

90/110

132/160

200/250

660V

5.5/7.5

11

23

39/55

67

100

156

235

375

Power of controllable motor(KW)AC-4

380V

1.4/1.9

3.5/4

7.5

12/14

17/21

27/35

38/50

58/66

81

660V

2.4/3.3

6/6.6

13

20.8/24

29.5/36

46.9/60

66/86

100/114

140

Frequency of operation(l/h)

AC3

1000

750

750

1200/1000

1000/850

1000/750

700/500

700/500

500/420

AC4

250

250

250

400/300

300/250

300/200

200/130

200/130

150

Electrical endurance(×106)

AC3

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

AC4

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

Operating voltage range of coil

(0.8~1.1)Ue

Power consumption of coil

Atracting(VA)

10

10

12.1

17

32

39

58

84

115

Starting(VA)

68

69

101

183

330

550

910

1430

2450

Rated insulation voltage of auxitiary contacts(V)

690

690

690

690

690

690

690

690

690

Conventional thermal current of auxitiary contacts(A)

10

10

10

10

10

10

10

10

10

Rated operating current of auxitiary contacts(A)

AC15380/220

6/10

6/10

4/6

4/6

4/6

4/6

4/6

4/6

4/6

DC13220V

0.45

0.45

0.48

0.48

0.48

0.48

0.48

0.48

0.48

Rated voltage of the control coil(V)

50Hz

24,36,48,110,127,220,380,etc

60Hz

24,110,220,440,etc.

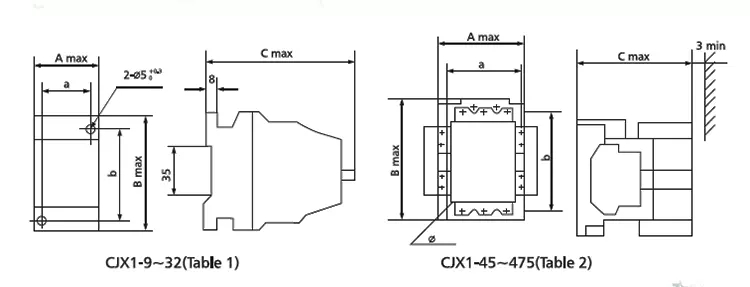

outline and mounting dimension:

Type

A max

B max

C max

a

b

CJX1-9,12

45

78.5

104(90)

35+0.31

60+0.37

CJX1-16,22

46

85

114

35+0.31

75+0.37

CJX1-32

74

85

108

50+0.31

75+0.37


Type

A max

B max

C max

a

b

φ

CJX1-45,63

91(114)

120

124

70+0.6

100+0.2

4.8

CJX1-75,85

102(125)

135

142

80+0.6

100+0.2

5.5

CJX1-110,140

122(145)

156

154

100+0.2

130+0.8

6.5

CJX1-170,205

140(163)

185

190

100+0.2

160+0.8

7

CJX1-250,300

150(173)

205

200

120+0.2

180+0.8

9

CJX1-400,475

165(188)

205

225

130+0.8

180+0.8

9
